Lab Report Calculations

Give every calculation a traceable structure

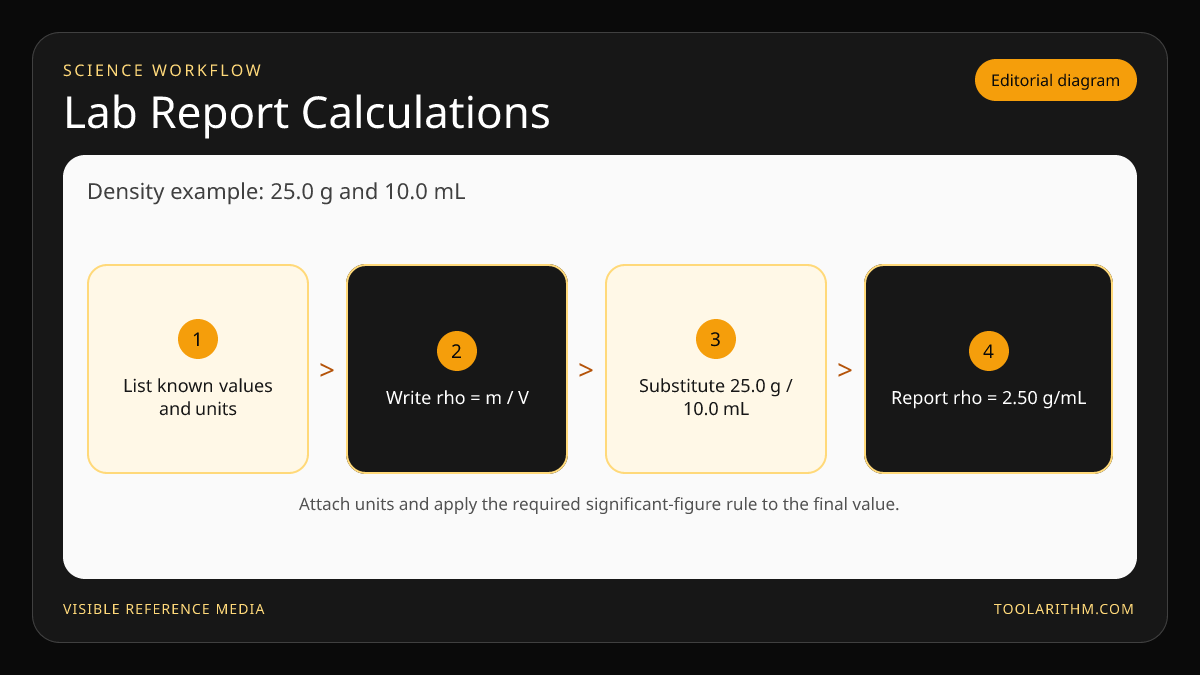

A useful calculation section connects a physical question to recorded observations. Start with what you measured, write the relationship before substituting numbers, and finish with a result whose units and reporting rule are clear. Keep the original readings in a data table; replacing them with rounded results makes later checks harder.

1. Name the quantity and method. Identify the sample, instrument, conditions and what the result will describe.
2. List readings with units. Preserve recorded trailing zeros and distinguish measured values from defined constants or adopted references.
3. Write the equation and substitute. Show conversions and enough arithmetic for someone to reproduce the result.
4. Report and interpret. State the reporting convention, compare with a suitable reference if requested, and explain the limits of the method.

The reference table summarizes this guide's hypothetical experiment. Swipe it on mobile, or focus the table and use the arrow keys. Wide equations support keyboard scrolling too.

Worked example: density by water displacement

All readings in this guide are hypothetical teaching data. Suppose a nonporous solid is completely immersed, without trapped air, in a compatible liquid. Assume it does not dissolve, react or absorb liquid during the measurement. Record the actual conditions in a real experiment; a displaced-volume model is unsuitable if those assumptions fail.

3. Divide mass by displaced volume

The quotient has three significant figures under that classroom rule. The output unit is mass per volume. The relationship is defined for positive volume in this experiment; a zero displaced volume cannot produce a finite density estimate for a positive mass. A final reading below the initial reading is a reason to inspect the procedure and input, not to report a negative density. OpenStax defines this density relationship.

The density tool checks units and the displacement arithmetic, but its display precision is a formatting choice. It does not infer the instrument uncertainty or automatically apply a classroom significant-figure rule from the spelling of the inputs. Verify the reported quotient separately.

Convert units without changing the physical result

Write units at the substitution step so cancellations are visible. Converting the numerator but leaving the denominator in a different scale can introduce large errors. NIST's quantity and unit conventions help keep symbols and values consistent.

The defined conversion factors are exact, so they do not reduce the significant figures of the measured result. Scientific notation makes the retained three figures explicit. A bare $2500$ can leave the intended reporting precision ambiguous, while $2.50\times10^3$ does not. Check the exact multiplier and scientific notation.

Use the Density Converter for a unit cross-check. A conversion tool verifies numerical equivalence; it cannot decide whether your sample, temperature or measurement model matches a reference source.

Keep significant figures separate from uncertainty

The common classroom rules serve different operations: addition and subtraction use the least precise adopted decimal place, while multiplication and division use the fewest adopted significant figures. These rules assume the recorded digits are meaningful. Your lab manual may instead require an explicit uncertainty method and a corresponding final reporting place.

For another example, the unrounded sum $12.11+0.3=12.41$ is reported as $12.4$ under the decimal-place rule. It is not rounded to a single significant figure just because $0.3$ contains one significant digit. Similarly, $2.5$ and $2.50$ represent the same numerical value but communicate different intended reporting precision. Check the addition example.

Keep guard digits during a chain of operations and avoid repeatedly rounding intermediate calculations. If a course requires rounding at specified stages, document that convention and follow it consistently. At an exact midpoint, apply the stated tie rule; different conventions can give different last digits. OpenStax's measurement chapter explains the usual introductory rules.

Significant figures do not supply a complete uncertainty budget. A last reported digit alone does not tell you about calibration, repeatability or shared effects between readings. Do not assign a standard uncertainty solely from the number of decimal places shown by a calculator.

Compare with a reference using percent error

Adopt a hypothetical practice reference of $\rho_{\mathrm{ref}}=2.60\,\mathrm{g/mL}$. This value is not a certified density or a claim about a real material. In an actual report, cite the substance, conditions and reference uncertainty. Convert both values to the same units before comparing them.

1. Keep the direction of the difference

The negative sign says the result is below the adopted reference. The magnitude of that difference is a different quantity, so label it explicitly rather than silently discarding the sign.

2. Form the relative magnitude

Here $3.85\%$ is the percentage rounded to two decimal places for illustration; apply your own reporting rule if it requires fewer digits. The exact fraction is retained for checking. This is a reference comparison, not the uncertainty of the density result. Check the percent error. The prefilled tool compares the numerical values without a unit label; both article inputs are already in the same density unit.

3. Handle limits honestly

When the reference is zero, the percentage is undefined, including the case where both values are zero. An absolute difference remains available. There is no universal rule that an error below $5\%$ is acceptable; acceptance limits depend on the experiment, purpose and stated protocol. Inspect the zero-reference case.

Use “difference from the adopted reference” where the reference itself is uncertain. NIST's terminology discussion distinguishes measurement error from uncertainty and emphasizes the role of the comparison value.

Repeated measurements: mean, spread and standard error

Suppose comparable repeated determinations give densities $2.48$, $2.50$ and $2.52\,\mathrm{g/mL}$. These can be reproduced from hypothetical masses $24.8$, $25.0$ and $25.2\,\mathrm{g}$ with displaced volumes $10.0\,\mathrm{mL}$ for each trial. Calculate a density for each paired mass and volume first; in general, a ratio of averages need not equal an average of ratios.

3. Do not relabel spread as total uncertainty

For independent, comparable observations, this estimates the statistical standard error of their mean. It does not include every source of measurement uncertainty. A shared calibration contribution does not disappear just because the procedure is repeated. With only three trials, be especially careful about strong claims. Neither this standard error nor one sample standard deviation automatically defines a confidence interval.

All three practice results fall below the hypothetical reference. That illustrates why repeatability does not establish reference agreement. It does not identify a particular cause or by itself prove systematic bias. NIST's Type A guidance covers statistical uncertainty evaluation; the Basic Statistics Guide develops the spread calculations.

Error of a mean and mean absolute error answer different questions

Comparing the mean with one reference is different from averaging each trial's absolute deviation. Signed differences can cancel when trials lie on opposite sides of the reference. In this particular example every trial is below the same reference, so the mean absolute percentage error equals the percentage error of the mean. That equality is a property of these data, not a general identity. Inspect both batch summaries.

Optional: propagate explicitly assigned standard uncertainties

Use this section when the experiment calls for an uncertainty budget. Consider the same nominal mass and volume, but separately assign illustrative standard uncertainties $u_m=0.10\,\mathrm{g}$ and $u_V=0.10\,\mathrm{mL}$. They are assumptions for this worked model, not values inferred from the trailing zeros or from the repeat trials above. Treat these two input quantities as uncorrelated and use a first-order approximation.

Within the stated linearized model, the radical is the exact arithmetic result; the propagation itself is an approximation. Choosing one significant digit for the reported uncertainty gives a result written as $\rho=(2.50\pm0.03)\,\mathrm{g/mL}$, where the accompanying uncertainty is a standard uncertainty. A protocol may ask for two significant digits instead. State the convention and do not label this a $95\%$ interval. See NIST's propagation model and combined standard uncertainty guidance.

Displacement readings can share an uncertainty component

This variance relationship includes covariance. Two readings from the same cylinder may share scale or calibration effects; assuming independence requires justification. The assigned volume uncertainty in the preceding example is already an input to that model. Do not add it again to two reading uncertainties or combine the repeated-trial standard error without considering what each component represents. Describe the actual method before choosing an uncertainty equation.

Turn the calculation into report wording

Use a short paragraph that connects the measured quantity, method, result and comparison. The following is an example of a classroom calculation statement; it does not claim a complete experimental uncertainty evaluation.

The hypothetical sample mass was $25.0\,\mathrm{g}$. The liquid reading changed from $30.0$ to $40.0\,\mathrm{mL}$, giving a displaced volume of $10.0\,\mathrm{mL}$. Dividing mass by volume gave $2.50\,\mathrm{g/mL}$ under the classroom significant-figure rule. This was $0.10\,\mathrm{g/mL}$ below the adopted hypothetical reference of $2.60\,\mathrm{g/mL}$, a percent error of approximately $3.85\%$ using the reference magnitude as the denominator.

For a real report, replace the practice data and reference with your own documented observations. Add the actual uncertainty evaluation if one is required. Discuss observed issues such as incomplete immersion or trapped air only when supported by your procedure or notes. Explain how a suspected issue could affect the model, and propose a check that would distinguish it from other causes.

Before submitting

• Can someone recover each final result from the raw data and formula?
• Do units cancel correctly, with defined conversions identified as exact?
• Have you kept unrounded intermediate values and stated the final reporting rule?
• Does the reference match the material and conditions, with a usable source?
• Are trial spread, standard error, reference error and combined uncertainty labeled separately?
• Have you reported missing information honestly instead of assigning an unsupported precision or acceptance threshold?

The Lab Calculators hub keeps the density, percent error and significant-figure tools together. Use the Mean, Median & Mode Calculator for a separate center check, and the Chemistry Concentration Basics guide when the report involves solutions rather than bulk density.

Practice before using your own data

Try each question first. The answers show the reporting assumption as well as the arithmetic.

Sources and verification method

Primary references support the measurement principles below. The numerical experiment, assigned uncertainties and practice reference are original hypothetical examples. Exact rational arithmetic and symbolic derivatives independently check the examples and figure geometry; the linked calculators provide a separate implementation check. No real experiment or certified material measurement is claimed.

• OpenStax Chemistry 2e: measurement and significant figures

  Measured digits, exact definitions, classroom arithmetic rules and the distinction between accuracy and precision.

• OpenStax University Physics: density and SI units

  Mass divided by volume and common density units. Its material table is not the source of our hypothetical reference.

• NIST SP 811, Chapter 7: writing quantities and units

  Consistent quantity symbols, unit symbols and numerical values.

• NIST TN 1297, Appendix D1: measurement terminology

  Error, repeatability and accuracy; why error and uncertainty describe different concepts.

• NIST TN 1297, Section 3: Type A evaluation

  Statistical evaluation, including the standard deviation of a mean from independent observations.

• NIST TN 1297, Appendix A: propagation of uncertainty

  First-order sensitivity coefficients, input variances and covariance terms.

• NIST TN 1297, Section 5: combined standard uncertainty

  Combining standard uncertainty components and the conditions needed to interpret a coverage interval.
