A calculation-note template that preserves the reasoning

Turn a calculator result into a calculation record someone else can reproduce. Use a clear sketch, original units, stated assumptions and a checked result in three worked flow, axial and beam notes.

Graph paper supplies alignment; the engineering record supplies meaning. Leave room for the question, sketch, inputs, model, conversion lines, solution and check. A result copied without its geometry, property basis or load arrangement can be numerically correct and still answer the wrong question.

Six blocks to include in one reproducible calculation
Block	What to record
Identity and question	Record the subject, date, revision and requested output. Keep a drawing or problem reference with the note.
Sketch and convention	Label geometry, supports, applied loads, axes and positive directions. State whether the sketch is schematic or drawn to a declared scale.
Inputs and their sources	List each original value with its unit. Identify which values are supplied, measured, adopted or calculated, and retain relevant property conditions.
Model and conversions	State the assumptions and governing relationship, then show unit conversions before substituting numbers.
Result and independent check	Report the requested quantity with units and suitable precision. Check dimensions, equilibrium, a second formulation or a limiting case.
Limits and revision record	Name what the model omits. Record the formula reference and explain any input or model changes in the next revision.

For a small calculation, the six blocks can fit on one sheet without becoming six separate pages. Put the model assumptions beside the result. Keep a source or drawing revision next to each adopted input, especially if properties depend on temperature, material condition or a particular section axis. Distinguish your own check from a later review or design acceptance.

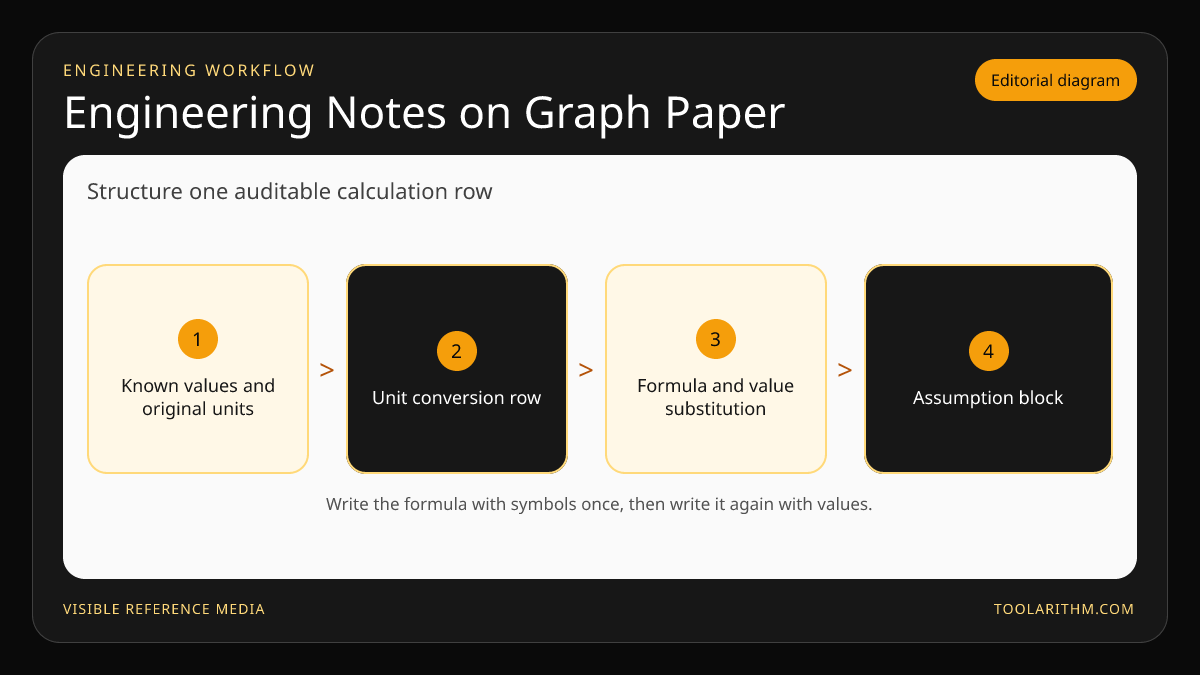

Engineering calculation-note workflow: identify geometry and model, preserve inputs and conditions, show conversions and solution, then record checks and limits. — A calculation record connects its question, geometry, input basis, model, units and independent checks. The examples use explicit pipe, axial and beam assumptions.

Set up the grid, then declare any drawing scale

The linked setup uses A4 portrait paper, a quiet $5\,\mathrm{mm}$ square grid, major lines every five intervals and $15\,\mathrm{mm}$ margins. Leave an identification strip at the top and keep a consistent left edge for conversion lines. Grid lines organize the note; they do not make an unlabeled sketch a dimensioned engineering drawing.

Choose paper and readable guides. Open the linked setup, or use dot grid when a full grid would compete with a schematic. A rectangular coordinate grid is easier to read for the numerical plots in this article.
Separate layout from physical scale. Label a free-body diagram as schematic unless you deliberately draw to scale. Put actual dimensions and support conditions on the sketch even when it is schematic.
Check the exported print. Export PDF on matching stock and use Actual size. Measure several intervals with a ruler before relying on the printed grid for a scaled drawing.

4(5\,\mathrm{mm})=20\,\mathrm{mm}

For a deliberate scale example, a real $3.00\,\mathrm m$ span drawn as $60.0\,\mathrm{mm}$ has scale $1:50$ . On a correctly printed $5\,\mathrm{mm}$ grid that drawing spans twelve cells. This is a separate drawing choice: the responsive illustrations in this article do not carry that physical paper scale.

\frac{3000\,\mathrm{mm}}{60.0\,\mathrm{mm}}=50,\qquad \frac{60.0\,\mathrm{mm}}{5\,\mathrm{mm}}=12

Adobe distinguishes Actual size from Fit. If a correctly scaled print clips, increase the generator margins and export again. For a detailed paper-size and print check, read Letter Graph Paper Templates.

Write the unit conversion before the substitution

Keep the original value visible, then show the converted value used in the equation. A prefix on a squared or fourth-power length unit applies to the whole power. The two geometric quantities below are different: area enters axial stress, while second moment of area enters bending stiffness.

Defined factors used in the worked notes
Quantity	Relationship
Dynamic viscosity	$1\,\mathrm{mPa\,s}=10^{-3}\,\mathrm{Pa\,s}$
Cross-sectional area	$1\,\mathrm{mm^2}=10^{-6}\,\mathrm{m^2}$
Second moment of area	$1\,\mathrm{mm^4}=10^{-12}\,\mathrm{m^4}$
Elastic modulus	$1\,\mathrm{GPa}=10^9\,\mathrm{Pa}$
Percentage strain	$1\%=10^{-2}$
Bending moment	$1\,\mathrm{kN\,m}=10^3\,\mathrm{N\,m}$

NIST lists coherent units and prefixes, and its quantity-writing guidance supports explicit values and units. The examples retain nominal guard digits during calculation and report nonzero final answers to three significant figures for consistency with their limiting givens. These hypothetical inputs do not include a propagated measurement-uncertainty model.

Worked note 1: Reynolds number for a circular pipe

Question: find the Reynolds number for a hypothetical Newtonian liquid with supplied density $\rho=998\,\mathrm{kg/m^3}$ , dynamic viscosity $\mu=1.002\,\mathrm{mPa\,s}$ , cross-sectional mean speed $\bar V=1.00\,\mathrm{m/s}$ and inside diameter $D=50.0\,\mathrm{mm}$ . These are nominal supplied properties, not a lookup for a named fluid at an implied temperature.

1. Identify the model and convert the inputs

The sketch should show the flow direction and identify the diameter used as the characteristic length. Use the circular-pipe screening context explicitly. A Reynolds number by itself does not calculate pressure loss, wall roughness or entrance development.

D=50.0\,\mathrm{mm}=0.0500\,\mathrm m

\mu=1.002\,\mathrm{mPa\,s}=0.001002\,\mathrm{Pa\,s}

The same pipe at three mean speeds

The axis is logarithmic. The three points give approximately $9.96\times10^2$ , $2.49\times10^3$ and $4.98\times10^4$ . The short guides mark chosen pipe-screening cutoffs of $2300$ and $4000$ ; the bands are conventions, not universal transition boundaries.

2. Substitute into the dimensionless relationship

\mathrm{Re}_D=\frac{\rho\bar V D}{\mu}

\mathrm{Re}_D=\frac{(998)(1.00)(0.0500)}{0.001002}

\mathrm{Re}_D\approx4.98\times10^4

The unrounded nominal value is about $49{,}800.3992$ . In the chosen pipe convention, the calculator labels this case turbulent. The label depends on the adopted context and screening limits; it is not a universal transition prediction.

3. Check units and use the other viscosity form

\frac{(\mathrm{kg/m^3})(\mathrm{m/s})(\mathrm m)}{\mathrm{Pa\,s}}=1

\nu=\frac{\mu}{\rho}\approx1.00401\times10^{-6}\,\mathrm{m^2/s}

\mathrm{Re}_D=\frac{\bar V D}{\nu}

Use the unrounded viscosity ratio for an arithmetic cross-check, rather than dividing by an already rounded display value. NASA Glenn introduces both viscosity forms. Open the main Reynolds-number note.

To see why the speed belongs in the note, hold all other inputs fixed. At $0.0200\,\mathrm{m/s}$ the nominal result is about $996$ , and at $0.0500\,\mathrm{m/s}$ it is about $2490$ . The selected tool bands classify those examples as laminar and transitional, respectively. Inspect the transitional screening example. The diagram uses a logarithmic axis; equal horizontal distances represent equal ratios, rather than equal Reynolds-number increments.

Worked note 2: axial stress, strain and a modulus ratio

Question: a uniform bar has nominal axial tensile force $F=10.0\,\mathrm{kN}$ , original area $A_0=100.0\,\mathrm{mm^2}$ , original gauge length $L_0=1.000\,\mathrm m$ and elongation $\Delta L=0.500\,\mathrm{mm}$ . Find engineering normal stress, engineering strain and their ratio. Assume the force is axial and the reported gauge extension represents the bar's deformation.

1. Use original dimensions and normalize the units

F=1.00\times10^4\,\mathrm N,\qquad A_0=1.000\times10^{-4}\,\mathrm{m^2}

\Delta L=5.00\times10^{-4}\,\mathrm m

An assumed elastic line through the nominal pair

The nominal pair is $\varepsilon=500\,\mu\varepsilon$ and $\sigma=100\,\mathrm{MPa}$ . The line assumes $E=200\,\mathrm{GPa}$ throughout the displayed interval. It does not establish a tested elastic range, yield point or allowable stress.

2. Calculate stress and engineering strain

\sigma=\frac{F}{A_0}=\frac{10{,}000}{0.0001000}\,\mathrm{Pa}

\sigma=1.00\times10^2\,\mathrm{MPa}

\varepsilon=\frac{\Delta L}{L_0}=5.00\times10^{-4}

\varepsilon=5.00\times10^2\,\mu\varepsilon=0.0500\%

On these two numerical scales, $500\,\mu\varepsilon = 0.05\%$ describes the same nominal ratio. The scientific notation and trailing zeros in the reported line above make the chosen three-significant-figure precision explicit.

3. Interpret the ratio before calling it a material property

E_{\mathrm{app}}=\frac{\sigma}{\varepsilon}

E_{\mathrm{app}}=\frac{100\times10^6}{0.0005}\,\mathrm{Pa}=2.00\times10^2\,\mathrm{GPa}

The ratio is a nominal secant result from the supplied pair. Interpreting it as Young's modulus requires an appropriate linear elastic, stress-free reference model. One pair does not prove a material's elastic range or yield stress. The illustration deliberately draws an assumed line through the pair, rather than presenting an experimental stress-strain curve. OpenStax explains the proportional elastic relationship.

Check the measurement-based note, then compare the same strain reported as a percentage. A dimensionless strain number and a percentage number are different scales of the same ratio.

4. Check the adopted elastic model in reverse

\varepsilon=\frac{\sigma}{E},\qquad \Delta L=\varepsilon L_0

Adopting $E=200\,\mathrm{GPa}$ and $\sigma=100\,\mathrm{MPa}$ gives $\varepsilon=0.000500$ ; multiplying by $1.000\,\mathrm m$ recovers $\Delta L=0.500\,\mathrm{mm}$ . This is an algebraic consistency check under the adopted model, not another independent material test. Inspect the inverse elastic-strain calculation.

Worked note 3: a simply supported beam with a center point load

Question: find the support reactions, peak bending moment and maximum downward deflection for a simply supported beam with $L=3.00\,\mathrm m$ , center load $P=5.00\,\mathrm{kN}$ , adopted modulus $E=200.0\,\mathrm{GPa}$ and second moment $I=8.00\times10^6\,\mathrm{mm^4}$ about the bending axis. Use a prismatic, small-deflection, linear elastic Euler–Bernoulli model with constant stiffness.

1. Draw the actual support and load arrangement

The left support is idealized as a pin and the right as a roller. The only applied load in this example is the downward point load at midspan. Self-weight, other loads, support settlement and shear deformation are omitted. This load case cannot be substituted for a cantilever, an off-center point load or a distributed load.

Center loading and the predicted downward deflection

The top support sketch is schematic, with equal half-span positions and a load arrow twice each reaction arrow's length. The lower plot uses meters horizontally and downward millimeters vertically. Its midpoint is $1.7578125\,\mathrm{mm}$ before rounding; this magnified plot is not a true-scale deformed shape.

2. Convert stiffness without losing the fourth power

E=2.000\times10^{11}\,\mathrm{Pa}

I=(8.00\times10^6)(10^{-3})^4\,\mathrm{m^4}

I=8.00\times10^{-6}\,\mathrm{m^4}

EI=1.60\times10^6\,\mathrm{N\,m^2}

Second moment of area is tied to a section and bending axis. It is neither cross-sectional area nor a mass moment of inertia. The declared value alone does not specify a complete section shape or its extreme-fiber distance.

3. Check equilibrium before deformation

R_A+R_B-P=0,\qquad R_B L-P\frac L2=0

R_A=R_B=\frac P2=2.50\,\mathrm{kN}

M_{\max}=\frac{PL}{4}=3.75\,\mathrm{kN\,m}

4. Calculate the center deflection and label its direction

\delta_{\max}=\frac{PL^3}{48EI}

\delta_{\max}=\frac{(5000)(3.00)^3}{48(1.60\times10^6)}\,\mathrm m

\delta_{\max}\approx1.76\,\mathrm{mm}\quad\text{downward}

The exact nominal calculation gives $1.7578125\,\mathrm{mm}$ before rounding. Deflection is zero at both ideal supports and symmetric about the center, where the slope is zero. The diagram uses the corresponding piecewise cubic shape, not a circular arc or a guessed parabola. A small value of $\delta_{\max}/L\approx5.86\times10^{-4}$ is one consistency check; section slenderness and shear-deformation relevance still require more information.

Figure 7 of the classical beam-formula reference supports this center-load case. The cited document is from 2005 and is used for these elastic relationships, not as a current design-code acceptance check. Inspect the beam note and span stations, or repeat the same nominal case in base SI units.

No allowable stress, load combination or deflection limit has been selected. The result therefore reports the response of this idealized model. It does not establish a design acceptance, and bending stress cannot be recovered from the given second moment alone without the relevant section geometry.

Review the calculation record, not only the last number

Trace the input basis. Original geometry, supplied properties and adopted conditions should be identifiable. Record which section axis, gauge length, characteristic length or load arrangement applies.
Check dimensions and scale. A Reynolds number and engineering strain are dimensionless. Stress and modulus have pressure dimensions. A bending moment has force-times-length dimensions; a deflection is a length.
Use an independent check. Compare the two viscosity formulations, recover elongation from strain, or verify beam force and moment equilibrium. Re-entering the same formula with the same mistaken unit conversion is a weak check.
Keep the model limits beside the result. One measured pair does not prove an elastic material range, a screening band does not determine every flow condition, and a beam response is not an allowable-load result.
Preserve the revision. If an input or model changes, keep the new date and reason with the recalculated result. Do not leave a corrected answer beside a superseded sketch.

For more unit and reporting practice, use Lab Report Calculations. For introductory force, energy and motion calculations, continue with Physics Formula Worksheets. The engineering calculator collection keeps the related tools together.

Practice: add the check and interpretation

Flow note: change only the mean speed

Keep the main pipe example's density, viscosity and diameter, but use $\bar V=0.0200\,\mathrm{m/s}$ . Find the Reynolds number and state exactly which screening convention you use.

Show worked answer: flow note

\mathrm{Re}_D=\frac{(998)(0.0200)(0.0500)}{0.001002}\approx9.96\times10^2

The chosen pipe convention places this below $2300$ . The result is one fiftieth of the main example because only mean speed was divided by fifty. This comparison checks the proportional dependence; it does not calculate pressure loss.

Check the low-speed pipe note

Axial note: preserve original dimensions

Use $F=12.0\,\mathrm{kN}$ , $A_0=150.0\,\mathrm{mm^2}$ , $L_0=2.000\,\mathrm m$ and $\Delta L=0.800\,\mathrm{mm}$ . Find engineering stress, strain and their nominal ratio.

Show worked answer: axial note

\sigma=80.0\,\mathrm{MPa},\qquad \varepsilon=4.00\times10^{-4}

E_{\mathrm{app}}=\sigma/\varepsilon=2.00\times10^2\,\mathrm{GPa}

The stress differs from the main example, while its stress-strain ratio is the same. The same ratio alone does not establish identical materials or experimental behavior.

Check the axial practice note

Beam note: state the load case first

Use the same simply supported center-point-load model with $P=4.00\,\mathrm{kN}$ , $L=2.00\,\mathrm m$ , $E=200.0\,\mathrm{GPa}$ and $I=4.00\times10^6\,\mathrm{mm^4}$ . Find reactions, peak moment and downward center deflection.

Show worked answer: beam note

R_A=R_B=2.00\,\mathrm{kN},\qquad M_{\max}=2.00\,\mathrm{kN\,m}

\delta_{\max}=\frac{(4000)(2.00)^3}{48(200\times10^9)(4.00\times10^{-6})}\,\mathrm m

\delta_{\max}\approx0.833\,\mathrm{mm}\quad\text{downward}

The two reactions add to the applied load, and their moments balance it about either support. The positive deflection value is explicitly reported as downward in this convention.

Check the beam practice note

FAQ

Frequently Asked Questions

What should an engineering calculation note contain?

Record the question, date or revision, a labeled sketch, original input values and units, their sources, the chosen model, unit conversions, symbolic relationships, substitutions and a reported result. Keep the assumptions beside the result and add an independent check. A later reader should be able to reproduce the calculation and identify what changed between revisions without guessing which dimensions, material properties or load arrangement were intended.

Does every sketch on graph paper have to be drawn to scale?

A free-body diagram can be schematic if its dimensions, load positions, supports and force directions are explicit. A drawing intended for measurement needs a declared physical scale and a verified print scale. Label magnified deformation sketches as exaggerated. The beam illustration in this article separates a schematic support diagram from a quantitative deflection plot whose horizontal and vertical axes use different units.

Why are area and second-moment unit conversions different?

A linear prefix factor is raised to the same power as the length unit. Therefore

1\,\mathrm{mm^2}=10^{-6}\,\mathrm{m^2}

, while

1\,\mathrm{mm^4}=10^{-12}\,\mathrm{m^4}

. Using only the linear millimeter factor in either conversion produces a large error. Original cross-sectional area is used in the axial stress example; the beam uses the second moment of area about the specified bending axis, a different geometric quantity.

Are dynamic and kinematic viscosity interchangeable?

They are related by

\nu=\mu/\rho

, but their numbers and units are different. Dynamic viscosity has SI unit

\mathrm{Pa\,s}

, while kinematic viscosity has unit

\mathrm{m^2/s}

. Use

\mathrm{Re}=\rho\bar V D/\mu

with dynamic viscosity or

\mathrm{Re}=\bar V D/\nu

with kinematic viscosity. State the fluid properties and their applicable conditions. The supplied example values are hypothetical inputs, rather than a temperature-indexed fluid-property lookup.

Do the pipe-flow screening boundaries apply to every geometry?

No. The example deliberately selects the calculator's circular-pipe convention, with chosen cutoffs at

\mathrm{Re}=2300

and

\mathrm{Re}=4000

. Its band labels summarize that selected screening model. They do not establish a universal physical transition or apply automatically to a flat plate, airfoil or other characteristic length. Inlet disturbances, development, geometry and fluid behavior can matter. Record the selected convention rather than copying a bare regime label.

Does one stress-strain pair establish Young's modulus?

The ratio

\sigma/\varepsilon

can be calculated from a nonzero strain, but interpreting it as Young's modulus requires an appropriate linear elastic regime and measurement basis. One nominal pair does not establish a material's complete stress-strain curve, yield stress or allowable load. Our line is an explicitly assumed elastic model through the example point. The inverse elastic-strain calculation adopts that modulus rather than independently proving material behavior.

What does the beam calculation leave out?

It represents one downward center point load on a simply supported, prismatic, linear elastic Euler–Bernoulli beam with constant stiffness. It omits self-weight unless separately included, shear deformation, support settlement, connection flexibility, dynamic effects and other load combinations. A small calculated deflection ratio is one consistency check; section dimensions and context are still needed to assess beam-theory assumptions. No allowable stress, serviceability criterion or design acceptance is established by this example.

How do I keep a printed graph-paper note reproducible?

Export the grid as a PDF with the intended page size, choose matching paper stock and print at Actual size or the equivalent

100\%

setting. Check a span covering several intervals with a ruler: four nominal

5\,\mathrm{mm}

cells should span

20\,\mathrm{mm}

. Printer scaling and image insertion can change physical dimensions. Preserve the original inputs, model, revision and source alongside the sheet so the record remains useful even when a sketch is intentionally schematic.

Sources and verification method

The references support definitions, unit conventions, the chosen classical beam relationship and print scaling. The worked inputs are original hypothetical notes. Independent exact arithmetic checks the conversions, stress and strain ratios, equilibrium and beam end conditions. The illustrated beam curve is derived from the piecewise cubic solution, and the actual SVG coordinates and calculator links are checked against that specification.

NASA Glenn: Reynolds number
The dimensionless viscosity parameter and the relationship between dynamic and kinematic viscosity; flow-regime boundaries remain context-dependent.
OpenStax: elasticity, stress and strain
Axial force, original area, original length, elongation and the assumed proportional elastic regime.
American Wood Council: classical beam formulas, Figure 7
Purdue hosts this 2005 reference. Figure 7 gives the simple-span center-point-load relationships used here. It is a classical formula reference, not a current design-code compliance claim.
NIST: SI units and prefixes
Coherent units, derived units and prefix powers used in the calculation notes.
NIST: expressing values of quantities
Clear numerical values, unit symbols and dimensionless quantities in technical writing.
Adobe Acrobat: print at Actual size
Actual size preserves the PDF scale; Fit can resize the entire page.
