Editable Polar Paper A4, 5mm, Blue, 12 Spokes
Editable A4 preset

A4 5mm Blue Polar Paper — 12 Spokes

Locate a point by radius and angle, then explain its horizontal and vertical offsets. The blue A4 sheet supplies ring and spoke references for your annotations.

Free to use
Print ready
PDF, PNG, SVG
Custom sizes

Polar Grid Preview

Choose your radial and angular divisions, then export an accurate plotting sheet.

Preparing the live paper preview…

What Can You Create?

One point described in two coordinate systems

Choose a radius and printed direction, then write the corresponding Cartesian components relative to the origin. The circular background supports both descriptions without performing the conversion itself. Keep the coordinate reference stated so a page location is not mistaken for an origin-relative offset.

Ring counts that preserve a physical radial scale

Count outward from the origin using the five-millimeter ring interval. Write which ring supplies the chosen point rather than treating a ring's diameter as its radius. The circle labels are angular references; the author adds any radial numbering or represented-value convention needed by the exercise.

A small angle-and-length worksheet

Compare the thirty-degree spoke interval with a measured radial run. Angle and radius use different units even when both are described by counts. Reserve a written formula and result beside the plot so the guide pattern does not silently decide what each quantity means.

Why Users Love This Tool

A clear starting angle convention

The initial twelve spokes divide a full turn into thirty-degree steps. Zero degrees points right and ninety degrees points up, with positive angles increasing counterclockwise. Degree labels are shown at every spoke in the starting seven-point treatment, and the origin marker is on. Label choices can change their presentation without turning angles into radial distances.

A centered A4 layout with room reserved for labels

Original stock is 210×297 mm210 \times 297\,\mathrm{mm} with linked twelve-millimeter margins and #3B82F6 strokes at 0.35pt. The center is (105,148.5) mm\left(105, 148.5\right)\,\mathrm{mm}. Sixteen five-millimeter circles reach an eighty-millimeter outer radius. The fitted circle allowance accounts for labels and stroke containment, so it is not simply half the nominal margin field width.

Perfect For

Students translating polar coordinates

Write the selected radius and angle before computing components. Keep upward mathematical vertical offsets separate from downward page coordinates. The grid makes the direction visible, while the formula and reference convention explain how the annotated point is located.

Teachers introducing radial units

Ask learners to identify the origin, count outward rings, and name the angular reference separately. Include a measured point and its component calculation. The background provides the plotted directions but does not generate a worksheet question, evaluate an answer, or place its point automatically.

Authors retaining a labeled geometry example

Save the point label, component arrows, and unit statement in the completed document. A reproducible background can support several explanations, but the authored coordinates identify the actual exercise. Keep those annotations beside the selected settings address when another reader needs to rebuild the example.

Worked point: twenty millimeters at thirty degrees

Choose the fourth original ring, giving r=4×5=20 mmr = 4 \times 5 = 20\,\mathrm{mm}, and the thirty-degree spoke. Relative to the origin, x=20 cos⁡ ⁣(30∘)=10 3≈17.3205 mmx = 20\,\cos\!\left(30^{\circ}\right) = 10\,\sqrt{3} \approx 17.3205\,\mathrm{mm} and y=20 sin⁡ ⁣(30∘)=10 mmy = 20\,\sin\!\left(30^{\circ}\right) = 10\,\mathrm{mm}. The paper uses a downward page-coordinate direction, so add the horizontal offset to 105mm and subtract the upward offset from 148.5mm. The point is therefore at approximately (122.3205,138.5) mm\left(122.3205, 138.5\right)\,\mathrm{mm} on the original A4 page. The radius is twenty millimeters; the Cartesian horizontal component is smaller, and neither is the forty-millimeter diameter of that ring. Add the point, its component arrows, and the calculation yourself. The four-ring point is comfortably inside the eighty-millimeter original outer circle.

Original preset specifications

This reference describes the named starting configuration. The live preview and downloads follow your current settings.

Original paper
A4 portrait · 210×297 mm210 \times 297\,\mathrm{mm}
Page insets
Top 12, right 12, bottom 12, left 12 mm
Inset rectangle
186×273 mm186 \times 273\,\mathrm{mm}
Radial field
16 rings · 5mm gaps · 80mm outer radius
Angular interval
12 spokes · 30∘30^{\circ} per sector
Original labels
degrees · 7pt · on; origin on
Polar stroke
#3B82F6 · 0.35pt
Original export sizes
PDF/SVG 210×297 mm210 \times 297\,\mathrm{mm}; PNG 2480×3508 px2480 \times 3508\,\mathrm{px} at nominal 300 DPI
How It Works

How it works in three quick steps.

1

State the origin and angle convention

Locate the original page center and confirm that zero points right while positive angles turn counterclockwise. Select a radius in ring intervals and write its physical value. Keep any represented data-unit mapping separate from the five-millimeter paper spacing.

2

Calculate and annotate both components

Use cosine for the horizontal offset and sine for the upward vertical offset. Translate to page coordinates only after identifying their downward vertical convention. Try the point label and arrows against the blue guides, then adjust strokes or label presentation as needed.

3

Check the plotted master after export

Export the current A4 background and add the point at full-page size. Measure ten original radial intervals as fifty millimeters along a spoke. Save the annotated coordinate example with its selected settings address after inspecting the component labels on paper.

Download & Print

PDF for the coordinate worksheet

The starting PDF preserves a 210×297 mm210 \times 297\,\mathrm{mm} A4 page and vector rings, spokes, and labels. Keep that full extent when composing the point example. Match stock and Actual Size for five-millimeter radial intervals, then inspect both its origin label and coordinate arrows.

PNG beneath a component explanation

Original portrait output is 2480×35082480 \times 3508 pixels at nominal 300 DPI. Preserve the full-page image and its border space when placing it behind annotated coordinates. Recheck the radial run after a receiving document has fitted the background into another region.

SVG for independent point and arrow layers

Keep the polar references beneath the point, component arrows, and written formula in a physically sized vector document. Preserve the A4 boundary while adding those layers. The saved example stores coordinates and calculations that the blank export and Share link do not capture.

Check the finished paper

  1. Retain the complete A4 page extent through the coordinate composition workflow and match it to the selected stock.
  2. Choose 100% or Actual Size and verify ten original radial intervals as fifty millimeters along a spoke.
  3. Read the thirty-degree direction, fourth-ring selection, and component labels without confusing radius with diameter.
  4. Keep the origin-relative and downward-page coordinate conventions visible beside the completed point example.

Adobe's PDF page-sizing guidance describes scaling controls. W3C's paper-size definitions document standard page dimensions.

FAQ

Frequently Asked Questions

Why is the point's horizontal component not twenty millimeters?
Twenty millimeters is the radial distance from the origin to the chosen point. At thirty degrees, its horizontal projection is twenty times cos⁡ ⁣(30∘)\cos\!\left(30^{\circ}\right), or ten times 3\sqrt{3}, approximately 17.3205mm. Its upward projection is ten millimeters. These components describe the same point using perpendicular offsets. Keep their directions and units named so the ring radius is not substituted for a horizontal measurement or for the circle's diameter.
Why is the upward component subtracted from the page center?
The mathematical example uses positive vertical offsets upward, while page coordinates increase downward from the sheet's top edge. Starting at the original 148.5mm center height, subtracting ten millimeters places the point at 138.5mm. The horizontal coordinate increases rightward in both conventions, so approximately 17.3205mm is added to 105mm. State both reference systems before locating annotations, particularly when a document application uses its own coordinate origin.
Do twelve spokes mean twelve thirty-degree labels plus another 360∘360^{\circ} spoke?
The original directions run from zero through 330 degrees in thirty-degree increments, giving twelve distinct spokes. A 360∘360^{\circ} direction coincides with zero rather than adding another distinct spoke. The circles supply a separate radial sequence, with the first circle five millimeters from the origin. Count angular directions and radial intervals independently; the full-turn closure does not create an extra position in the twelve-spoke count.
Why do the original circles stop at eighty millimeters on A4?
The renderer reserves space for angular labels and contains the stroke within the selected margins. The resulting original layout has sixteen circles at five-millimeter spacing, reaching eighty millimeters in radius. That count describes the starting twelve-millimeter borders, seven-point labels, and 0.35pt strokes. Paper, margin, label, or stroke edits can change the fitting allowance, so inspect the current output rather than assuming every configuration retains sixteen circles.
Does selecting radians move the worked point?
Changing the angular label unit changes how the direction is written; thirty degrees and π6\frac{\pi}{6} radians identify the same orientation. The physical ring spacing remains a separate setting, and the background does not automatically relocate a point authored outside the editor. Preserve the chosen point coordinates and reference convention in the annotated file. The shared background address reproduces validated guide settings rather than storing the coordinate calculation or arrows.

About This Tool

A4 five-millimeter blue polar paper with twelve spokes provides a compact reference for explaining one point by radius and angle. Its thirty-degree directions are easy to identify while the rings establish a separate measured radial rhythm. The authored exercise must still state the units and coordinate convention, because an angular label is not a radius and an origin-relative component is not a location measured from the paper edge.

The fourth-ring example converts a twenty-millimeter radius into horizontal and upward offsets before translating them to the A4 page center. This makes the downward page-coordinate direction visible rather than hiding it inside the final ordered pair. The circle's forty-millimeter diameter is another distinct measurement and cannot replace either component. Labeling the point and its component arrows keeps those related quantities inspectable on a completed worksheet.

A retained coordinate master combines the polar background with the written conversion and reference systems. Try the smallest point label against the blue strokes, preserve full-page placement when five-millimeter radial intervals matter, and inspect a measured spoke run after composition. Save that annotated example beside its selected settings address. The pair preserves both a reproducible A4 guide and the mathematical explanation needed to reconstruct the selected point without mistaking the blank lattice for an automatic coordinate calculator.

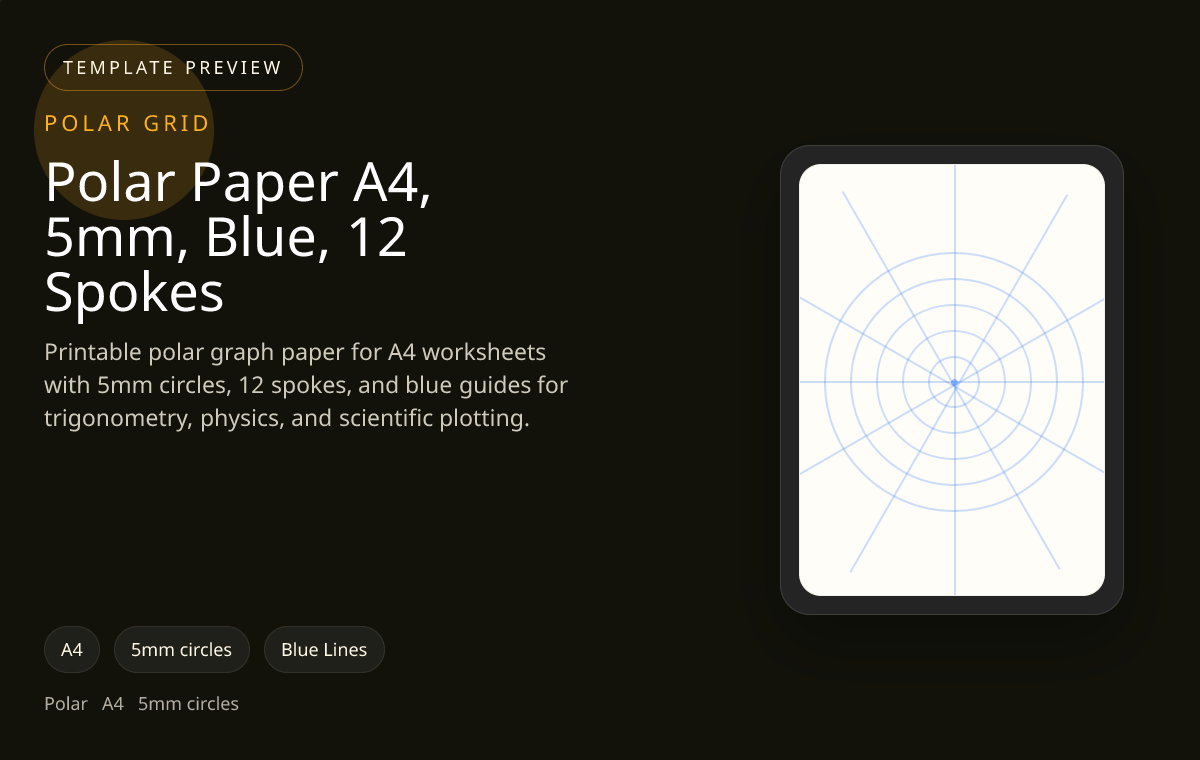

Original Preset Reference

Polar Paper A4, 5mm, Blue, 12 Spokes; 5mm circles, Blue Lines polar grid reference for worked point: twenty millimeters at thirty degrees
Printable polar graph paper for A4 worksheets with 5mm circles, 12 spokes, and blue guides for trigonometry, physics, and scientific plotting.
