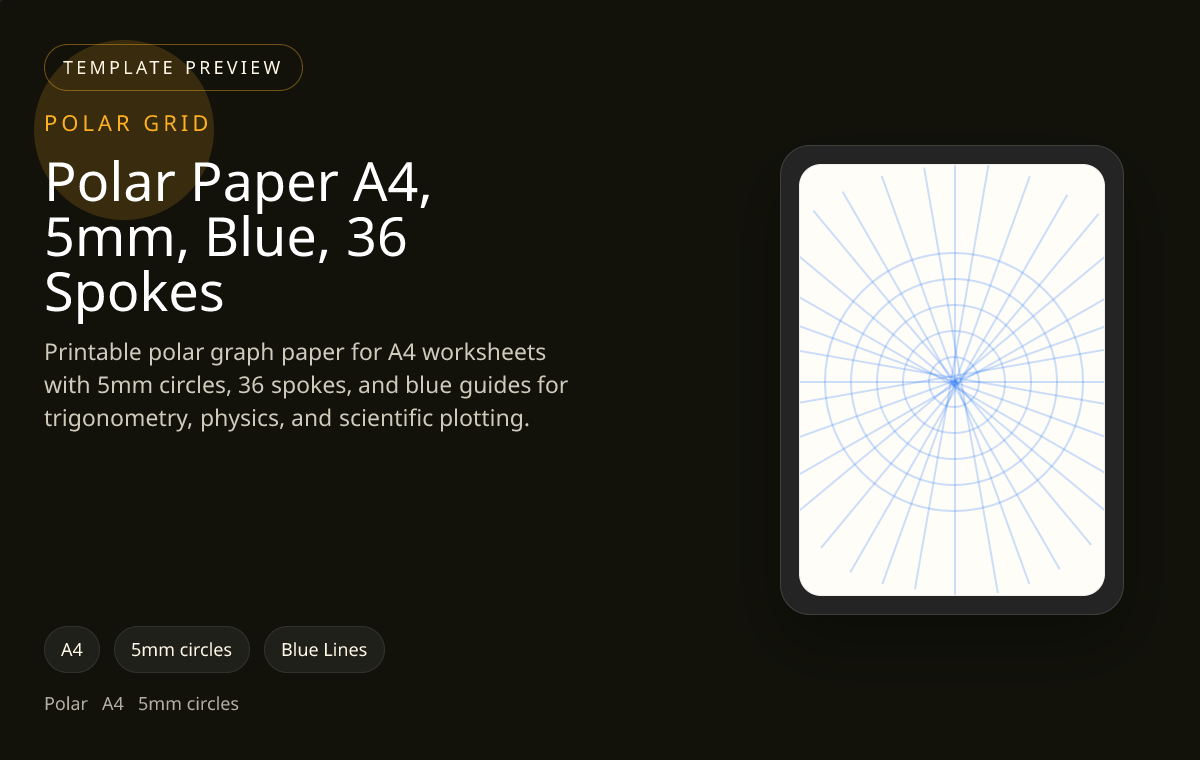

Editable Polar Paper A4, 5mm, Blue, 36 Spokes
Editable A4 preset

A4 5mm Blue Polar Paper — 36 Spokes

Use ten-degree directions to sample a chosen rose curve by hand. Explain signed radii and between-ring placement before joining points on the blue A4 background.

Free to use
Print ready
PDF, PNG, SVG
Custom sizes

Polar Grid Preview

Choose your radial and angular divisions, then export an accurate plotting sheet.

Preparing the live paper preview…

What Can You Create?

A curve sampled at named angles

Choose a formula and calculate its radius at several printed directions. Ten-degree references provide a convenient angular sequence, but they do not evaluate the function. Record the chosen samples beside the plot so a reader can distinguish computed points from a freely drawn connecting line.

Negative radii with an explicit plotting convention

When a formula produces a negative radius, plot its magnitude in the opposite direction. That direction shift is a coordinate rule rather than an extra ring below the origin. Label one such sample explicitly to make the interpretation clear before sketching the rest of the study.

Interpolation between radial references

A computed radius can fall between the five-millimeter circles. Estimate its relative position deliberately rather than rounding every value onto a ring. Keep the calculated value in the annotation so the finite guide pattern is not mistaken for a restriction on allowable coordinates.

Why Users Love This Tool

Ten-degree directions with independently chosen label density

The original thirty-six spokes divide a turn into ten-degree intervals. Degree labels begin at every spoke in a seven-point treatment, with the origin marker on. Label frequency can be reduced if text competes with annotations while the spoke count remains separate. Recheck the fitted allowance after changes to label size or notation.

A blue radial field with a known A4 extent

The initial 210×297 mm210 \times 297\,\mathrm{mm} portrait page uses linked twelve-millimeter borders and #3B82F6 strokes at 0.35pt. Its center is (105,148.5) mm\left(105, 148.5\right)\,\mathrm{mm}, with sixteen five-millimeter circles reaching eighty millimeters. The circle-and-label layout reserves room around the polar field rather than filling the complete nominal margin rectangle with rings.

Perfect For

Students checking signed polar coordinates

Write both the evaluated radius and the final plotted direction for a negative sample. The original angle remains part of the function input, while the opposite plotted direction describes the resulting point. The blank guide supports the construction without correcting a mistaken sign.

Teachers discussing sampled curves

Show a small table of angles and computed radii before drawing a connecting curve. Ask which values coincide with circles and which need interpolation. The ten-degree grid provides references, but it does not establish that a few plotted samples describe every feature of the continuous function.

Authors preparing a curve-reading example

Keep the formula, angle units, and negative-radius convention visible beside the diagram. Distinguish computed sample marks from illustrative connecting strokes. Retain the annotated study with its chosen guide settings so another reader can follow the construction rather than only seeing a finished-looking shape.

Worked rose samples: r=30 cos⁡ ⁣(3 θ)r = 30\,\cos\!\left(3\,\theta\right) millimeters

Use degrees for θ in\theta\,\mathrm{in} the stated cosine calculation. At 0∘0^{\circ}, 10∘10^{\circ}, 20∘20^{\circ}, and 30∘30^{\circ}, the radii are respectively 30mm, 15 3≈25.9808 mm15\,\sqrt{3} \approx 25.9808\,\mathrm{mm}, 15mm, and zero. The thirty-millimeter sample reaches the sixth original ring, while the ten-degree sample lies between the fifth and sixth rings. Its offset above the fifth ring is approximately 0.9808mm. The zero-radius sample is the origin regardless of its input angle. At 40∘40^{\circ}, the formula gives −15 mm-15\,\mathrm{mm}; plot that magnitude at 220∘220^{\circ}, the input direction plus a half-turn. The full formula is a three-petal rose, but the listed samples alone are not a complete plotted trace. Its radius magnitude never exceeds thirty millimeters, inside the original eighty-millimeter field. Calculate and annotate additional samples yourself before sketching a continuous curve; the tool exports the blank rings and spokes.

Original preset specifications

This reference describes the named starting configuration. The live preview and downloads follow your current settings.

Original paper
A4 portrait · 210×297 mm210 \times 297\,\mathrm{mm}
Page insets
Top 12, right 12, bottom 12, left 12 mm
Inset rectangle
186×273 mm186 \times 273\,\mathrm{mm}
Radial field
16 rings · 5mm gaps · 80mm outer radius
Angular interval
36 spokes · 10∘10^{\circ} per sector
Original labels
degrees · 7pt · on; origin on
Polar stroke
#3B82F6 · 0.35pt
Original export sizes
PDF/SVG 210×297 mm210 \times 297\,\mathrm{mm}; PNG 2480×3508 px2480 \times 3508\,\mathrm{px} at nominal 300 DPI
How It Works

How it works in three quick steps.

1

Write the formula and its angle units

State r=30 cos⁡ ⁣(3 θ) mmr = 30\,\cos\!\left(3\,\theta\right)\,\mathrm{mm} with θ\theta measured in degrees, then prepare a sample table. Keep each input angle associated with its signed radius. Do not replace a negative result with zero or round an intermediate value to the nearest circle.

2

Locate samples and label a sign reversal

Use the ten-degree spokes for direction and the five-millimeter circles for radius magnitude. Interpolate a between-ring value and mark the origin when radius is zero. For a negative sample, add a half-turn to the plotted direction and explain that convention beside the point.

3

Proof the annotated sample study

Export current A4 settings and place the formula, table, and points at full-page size. Measure the sixth-ring radius as thirty millimeters on paper. Save the sample explanation and chosen background address together after inspecting the smallest angle label.

Download & Print

PDF for the signed-radius exercise

The initial PDF has a 210×297 mm210 \times 297\,\mathrm{mm} A4 page with vector polar references and degree labels. Keep its full extent while adding computed points and the table. Matching stock and Actual Size preserve the five-millimeter rings, then check the negative-sample annotation on the finished worksheet.

PNG for a plotted-samples document

Original portrait output contains 2480×35082480 \times 3508 pixels at nominal 300 DPI. Preserve its whole-page proportions and borders during placement. A later fit or resize can change radial dimensions, so remeasure the completed plot after the formula and samples have been composed.

SVG for separate curve and coordinate layers

Keep the blue rings, spokes, computed points, connecting strokes, and sample table separately editable in a vector master. Preserve the physical A4 boundary while composing them. The annotated file records signed values and curve assumptions that the background Share address does not contain.

Check the finished paper

  1. Match the composed sample worksheet to A4 stock and preserve the selected full-page extent during annotation.
  2. Use 100% or Actual Size and measure from the origin to the sixth original ring as thirty millimeters.
  3. Read the formula's degree convention and the −15 mm-15\,\mathrm{mm} sample plotted at 220∘220^{\circ} on the completed print.
  4. Inspect between-ring points separately from illustrative connecting strokes before retaining the curve-study master.

Adobe's PDF page-sizing guidance describes scaling controls. W3C's paper-size definitions document standard page dimensions.

FAQ

Frequently Asked Questions

How is a negative radius plotted on this paper?
Plot its positive magnitude in the direction opposite the input angle, a half-turn away. For the example, θ=40∘\theta = 40^{\circ} produces −15 mm-15\,\mathrm{mm}, so the final point lies fifteen millimeters from the origin at 220∘220^{\circ}. The signed value stays in the calculation table even though the physical distance is positive. Keep the original input and final plotted direction labeled separately; a negative radius is not a circle drawn inside or below the origin.
Should 25.9808mm be rounded to the twenty-five-millimeter circle?
That value lies approximately 0.9808mm outward from the fifth original ring and below the sixth. The printed circles are reference intervals rather than the only permissible radii. Keep the calculated value written in the table and interpolate its position on the ten-degree spoke. Rounding every sample to a ring changes the illustrated function, so state any intentional approximation instead of letting the background silently quantize the radius.
Does thirty-six spokes imply that every label must be printed?
Spoke count sets the ten-degree angular division. Label frequency is a separate control and can leave some directions unlabeled while their spoke references remain. The original preset shows every degree label at seven points. Changes to notation or text size can alter the space reserved around the field, so check the current ring allowance and smallest annotation after making those edits rather than assuming the initial label layout stays unchanged.
Are the five listed samples a complete three-petal rose?
They illustrate evaluation, a between-ring radius, the origin, and one sign reversal. They do not by themselves give a complete continuous trace or all important points of the formula. Calculate additional samples and decide how the curve is to be connected, retaining that method beside the plot. The background generator neither evaluates the function nor draws a rose, so a finished-looking curve remains an authored illustration.
What happens to the point when its radius is zero?
It is located at the origin independently of the direction written in the input pair. In the example, thirty degrees gives cos⁡ ⁣(90∘)\cos\!\left(90^{\circ}\right) = zero and therefore a zero-radius point. Keep that input in the sample table even though it shares the center location with other possible zero-radius inputs. The visible origin marker is a guide reference, while the explanation of which sample reaches it belongs in the annotated worksheet.

About This Tool

A4 five-millimeter blue polar paper with thirty-six spokes offers finer angular references for a manually evaluated curve study. Ten-degree directions can make a chosen sampling sequence easy to follow, while the rings supply a separate five-millimeter radial rhythm. The guide does not restrict coordinates to printed crossings. Values between rings, zero-radius samples, and negative-radius conventions need their own written interpretation on the completed plot.

The rose example focuses on a few deliberately different cases rather than pretending that a short table is a full trace. A maximum sample reaches a printed ring, another lies between two rings, one reaches the origin, and a later signed result reverses its plotted direction. Keeping the formula, degree units, and sample table visible makes each placement inspectable. A connecting stroke is an additional illustrative choice and should remain distinguishable from the calculated coordinate marks.

A retained curve worksheet combines its mathematical convention with a reproducible polar background. Label density can be adjusted around the authored samples, but the current fitted ring allowance should be rechecked after label or page changes. Preserve full A4 placement when radial millimeters matter and measure the final composed print. Save that annotated study beside its selected settings address so another reader receives both the reference pattern and the sample method needed to understand the signed rose coordinates.

Original Preset Reference

Polar Paper A4, 5mm, Blue, 36 Spokes; 5mm circles, Blue Lines polar grid reference for worked rose samples: r = 30 cos (3 θ) millimeters
Printable polar graph paper for A4 worksheets with 5mm circles, 36 spokes, and blue guides for trigonometry, physics, and scientific plotting.
